Bamboo Beams

ANOS® bamboo product lines offer strand woven bamboo beams and engineered bamboo beams for heavy timber construction and Glu-lam applications.Bamboo beams can be used to create beams in various shapes and lengths, and it is suitable for both interior and exterior use, providing an advantage over other engineered products used in structural projects. Bamboo beams are used in many different types of construction, such as roofing, window frame, door frame, wall panels, column and furniture. It is also used in heavy construction such as bridges, buildings, and other large-scale projects.

Main Difference Between Strand Woven Bamboo Beams And Engineered Bamboo Beams

  • Strand woven bamboo beams are made by crushing the bamboo strips into fibers, which are then compressed and bonded together with high temperature and high pressure and phenolic resin to create a dense and strong beam.
  • Engineered bamboo beams, on the other hand, are made by layering strips longitudinally or horizontally of bamboo together and bonding them with phenolic resin to create a beam that is structurally stable and strong.
  • The main difference between the two is that strand woven bamboo beams are denser and harder, while engineered bamboo beams are more flexible and lightweight, and engineered bamboo beams are relatively cheaper than strand woven bamboo beams because of the difference in production process and materials used. While both types of bamboo beams offer similar structural performance and are sustainable and eco-friendly alternatives to traditional wood beams., engineered bamboo beams may be a more cost-effective option for certain applications.

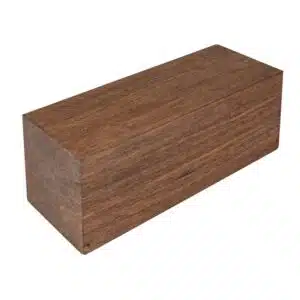

Strand Woven Bamboo Beams

High-Density Strand Woven Bamboo Beams

High-density strand woven bamboo beams are created by pressing crushed bamboo strips and phenolic resin together under high temperature and high pressure using a large press. The process uses a press with a capacity of 3,000 tons to fuse the materials together, resulting in a strong and durable building material.

ANOS® strand woven bamboo beams are versatile and can be manufactured in various shapes to meet the specific needs of a project. The beams can be straight, cambered, or curved. This flexibility allows for a wide range of design possibilities and can be used in many different types of construction projects.

Specification of bamboo beams could be customized.
Product No.Length
(mm)
Width
(mm)
Thickness
(mm)
Grooved
(Both side)
CoatingEdgesSurface
DG011860
2000
2500
120
100
80
60
60NoYesBevelAs shown
LG0180

ANOS® Bamboo Jacking Beams are a sustainable alternative to traditional tropical hardwood jacking beams used in construction projects, mining, and heavy equipment stabilization. ANOS’s bamboo is sustainably sourced and has a negative carbon footprint, making it a more environmentally friendly option compared to traditional materials. The bamboo jacking beams can withstand up to 60 tons with minimal indentation. They also have the highest fire rating for EU standards, making them suitable for use in fire department and search and rescue applications.

Technical Specifications
Density≥1.20g/cm3
Moisture Content:8-12%
StructureStrand Woven Bamboo
Breaking strength (EN1533)3.13KN,400mm
Biological durability(EN335)Class 4
Reaction to fire(EN ISO 10456)B-s1,d0
Resistance to termiteGrade 8
Formaldehyde Emission (EN717-2)E1-E0
Width expansion ratio (4 hrs circulating boiled)≤1%
Thickness expansion ratio (4 hrs circulating boiled)≤5%
CertificationISO9001:2008,ISO14001:2004,SGS,CE,FSC
Warranty25 years structural guarantee

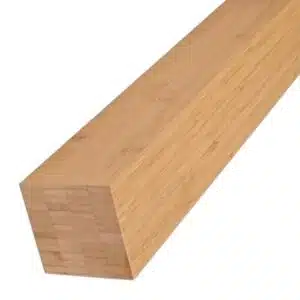

Engineered Bamboo Beams

Engineered Bamboo Jacking Beams

Engineered bamboo beams are made by layering thin strips of bamboo in either a longitudinal or horizontal orientation and pressing them together with phenolic resin under high temperature and pressure. This process creates a beam that is both structurally stable and strong, while also being a sustainable and eco-friendly alternative to traditional wood beams. It is also important to note that engineered bamboo beams are often used as a replacement for wood products in flooring, cabinetry, and other applications where the natural look of bamboo is desired.

Specification of bamboo beams could be customized.
Product No.Length
(mm)
Width
(mm)
Thickness
(mm)
Grooved
(Both side)
CoatingEdgesSurface
DG011860
2000
2500
120
100
80
60
60NoYesBevelAs shown
LG0180

Wide Applications Of Bamboo Beams

bamboo is becoming a popular building material due to its versatility, beauty, sustainability, flexibility, and strength. It is also a renewable resource that grows quickly, making it an environmentally friendly alternative to other building materials.

Bamboo beams are versatile building materials that can be used in a variety of construction and carpentry projects. They have a natural strength and durability, and can be used in both structural and aesthetic applications. They can be used in exterior works, such as roofing, decks and fences, and in interior works such as flooring, walls, and furniture. They can also be used as scaffolding or in the construction of bridges and other structures.

To suit specific tasks, appropriate bamboo beams should possess certain features that align with those tasks. For example, for structural uses, bamboo beams should have a high compressive and tensile strength, as well as good dimensional stability. For exterior uses, bamboo beams should be able to withstand weathering and decay, and for interior uses, they should be finished to a smooth surface and be free of defects.

It’s important to note that bamboo is a natural material and therefore the quality and performance of the bamboo beam can vary depending on the species, growing conditions, and harvesting methods. Therefore, it’s important to source bamboo beams from a reputable supplier like ANOS® who can provide information on the origin and quality of the bamboo used.

Advantages Of ANOS® Bamboo Beams

ANOS ® bamboo beams is a high-quality, durable beam option that is both attractive and eco-friendly, it has several features that make it an attractive option for use in various applications:

  • High Density
  • Durability
  • Weather Resistance
  • Strength
  • Aesthetics
  • Sustainability
  • Cost-Effective
  • Easy To Maintain

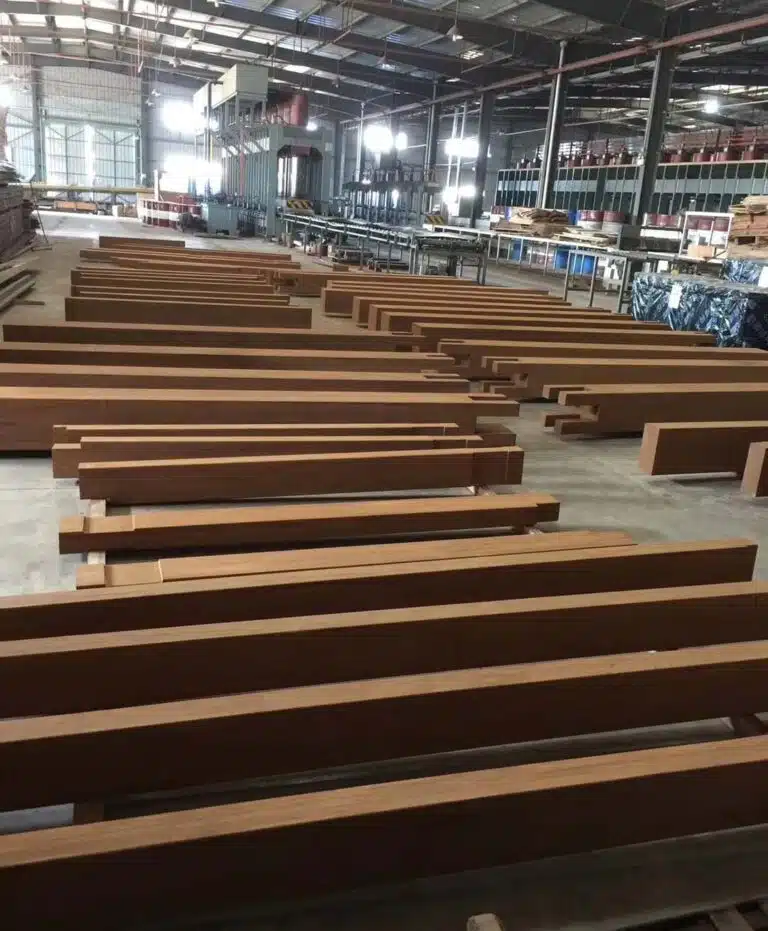

Bamboo Beams Supplier in China

ANOS® is a reputable and experienced bamboo beams manufacturer and supplier in China, with over a decade of experience in the bamboo industry. We offer a wide range of options to suit any project, and have a proven track record of supplying bulk orders to customers.  We understand that the quality of bamboo beams can vary among suppliers, which is why we strive to ensure that our products meet the highest standards and are backed by certifications. When looking for a reputable and reliable bamboo beams supplier, trust ANOS® for your bamboo beam needs.
